Application :

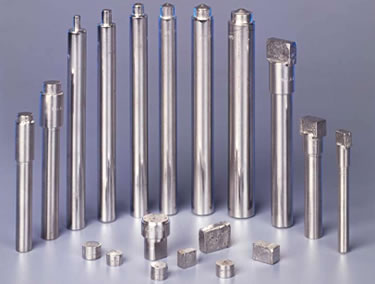

Balaji Grit Impregnated Dressers are used mainly for finish grinding, i.e. on screw-thread gear, thread gear teeth and profile grinding machines as well as on tool grinders, plain grinding machines and ball grinding plant.
The diamond grain, concentration and bond are appropriately inter adjusted.
Advantages :
Restores the required effective roughness of the wheel surface. It is adapted to the machining operation by varying the traverse dressing feed.
Complete use without maintenance.
The dressing of acute angled wheel profiles presents no problems.
Tool No.
Diamond Section
Dimensions of Diamond Grit Impregnated slugs
Diamond size in Micron
'D'
Diameter
MM
'L'
Length
MM
Bond
Recommendation
DG-3
350
12.5
160
WC
LINDER, WMW, JUNG, HEALD EXCELLO, JONES & LAMSON OTHER INTERNAL GRINDERS
250
*
*
W
DG-4
500
12.5
160
WC
MAAG, REISHAUR, STUDER, TOOL & CUTTER, GRINDER, GEAR GRINDER, WMW, JUNG, SAAS
630
*
*
W
DG-5
500
12.5
160
WC
DECKEL, STUDER, VOUMARD, NOVA GEAR GRINDER OTHER SMALL GRINDERS
630
*
*
W+BR
DG-6
500
12.5
160
WC
REISHAUR, GLEASON, GENERAL PURPOSE SMALL CYLINDERICAL & SURFACE GRINDERS
630
*
*
W+BR
DG-8
630
12.5
160
WC
FORTUNA. HMT, CENTERLESS. SURFACE & CYLINDERICAL GRINDERS
750
*
*
W+BR
DG-10

DG-10-P
850
12.5
160
WC
CENTERLESS, SURFACE CYLINDERICAL AND OTHER GRlNDERS GENERAL PURPOSE OFF HAND ON BENCH GRINDERS
750
*
*
W
1000
*
*
W+BR
630
*
*
DG-12

DG-12-P
850
16
160
WC
 GENERAL PURPOSE OFF HAND USE ON BIG GRINDER CENTRELESS AND CYLINDRICAL, ROTARY SURFACE GRINDERS
750
*
*
1000
*
*
W+BR
1250
*
*
DG-15

DG-15 - P
1000
19
160
WC
 FOR HEAVY STOCK REMOVAL ON BIG GRINDERS OFF HAND ROUGH USE BALL PLANTS
850
*
*
W
1200
*
*
W+BR
1450
*
*
^ TOP
Tool No. Diamond Section Shank Detail Grit Micron Bond Recommendation
DG - BL - 1
10 x 10 x 6 		630 WC
GENERAL TOOL ROOM DRESSING FOR USE ON CENTERLESS CYLINDERICAL & SURFACE GRINDING WHEELS WHERE FORM STEP OR ANGLE DRESSING IS REQUIRED
500 W
750 W + BR
DG - BL - 2
15 x 10 x 7		 630 WC
FOR USE ON 300¢ TO 500¢ X 75 CYLINDRICAL, SURFACE AND CENTERLESS GRINDERS
500 W
750 W + BR
DG - BL - 3
20 x 15 x 7		 750 WC
FOR USE ON 500 MM¢ X 75 AND LARGER CYLINDRICAL, CENTERLESS AND SURFACE GRINDING WHEELS
630 W
850 W + BR
DG - CR
OD - 25
ID - 17
WIDTH - 6		 630 WC
FOR USE ON ANY STRAIGHT FACE OR ANGULAR FACE TRAVERSE SURFACE AREA IN CONTACT CAN BE ALTERED EASILY
500 W
350 W + BR
^ TOP
DG - 20 ( 20 Ø x 10 )
DIAMOND GRIT IMPREGNATED TOOLS FOR BALL GRINDING PLANTS FOR VERY HIGH STOCK REMOVAL OF GRINDING WHEELS.

SHANKS GRIT AND BOND CAN BE MADE AS PER YOUR SPECIFICAITON.
CONCENTRATION - 50
SIZE OF GRIT - 800
BOND - WC
DG - 25 ( 25 Ø x 10 )
CONCENTRATION - 50
SIZE OF GRIT - 800
BOND - WC
DG - BL ( 11 x 38 x 8 )
CONCENTRATION - 50
SIZE OF GRIT - 800
BOND - WC
Standard Shanks Bond Tool No. Grit
Micron 		Guideline for
Grinding Wheel
Grain
WC
W + BR		 86
C
M
F
FF
FFF
F-4
500
350
160
100
75
50
54/80
80/120
120/180
180/220
220/320
320/600
B.S.S.
Mesh
Size
DIAMOND GRIT IMPREGNATED THREAD DRESSERS ARE USED FOR FINISH GRINDING i.e. ON SCREW THREAD, GEAR AND PROFILE GRINDING MACHINES AS WELL AS ON TOOL AND PLAIN GRINDER.
LIGHT DRESSING FORCE.
ACUTE ANGLED WHEEL PROFILE CAN BE MAINTAINED.
EFFECTIVE OPEN STRUCTURE OF GRINDING WHEEL IS MAINTAINED.
WC 85
C
M
F
FF
FFF
F-4
500
350
160
100
75
50
54/80
80/120
120/180
180/220
220/320
320/600
B.S.S.
Mesh
Size
WC 65
C
M
F
FF
FFF
F-4
500
350
160
100
75
50
54/80
80/120
120/180
180/220
220/320
320/600
B.S.S.
Mesh
Size
WC 64
C
M
F
FF
FFF
F-4
500
350
160
100
75
50
54/80
80/120
120/180
180/220
220/320
320/600
B.S.S.
Mesh
Size
